Hydraulic 10 Cbm Cement Mixer Truck HOWO T7H 360 Hp 6X4 ZF Reducer

Hubei Suny Automobile And Machinery Co., Ltd

Hydraulic 10 Cbm Cement Mixer Truck HOWO T7H 360 Hp 6X4 ZF Reducer

Brand Name : SUNY

Model Number : SYCMT10HW

Certification : CCC, ASME, BV, SGS, etc

Place of Origin : China

MOQ : 1 unit

Price : USD 40, 000 ~ 60, 000 per Unit

Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Units per year

Delivery Time : 15 ~ 25 working days after we get the deposit

Packaging Details : Nude with waxing. Whole truck by ro - ro ship, bulk ship and flat rack. Upper body by 40HQ container.

Color : White with red and blue stripes, Optional.

Engine : 360 Hp, Sino

Water Tank : White with red logo, 400 Litres

Chute : White color, 110 CM main foldable Chute

Mixer Drum : White with red and blue stripes, 10 CBM mixing volume

Cab : White color with one Sleeper

Chassis : HOWO T7H

Ladder : White color, both sides

Contact Now

Hydraulic 10 Cbm Cement Mixer Truck HOWO T7H 360 Hp 6X4 ZF Reducer

Description:

1) Color: White with red and blue stripes, Optional;

2) Engine: 360 Hp, Sino;

3) Water Tank: White with red logo, 400 Litres;

4) Chute: White color, 110 CM main foldable Chute;

5) Mixer Drum: White with red and blue stripes, 10 CBM mixing volume;

6) Cab: White color with one Sleeper;

7) Chassis: HOWO T7H;

8) Ladder: White color, both sides;

9) Reducer brand: Germany brand , ZF;

10) Hydraulic pump brand: Italian brand , INTERPUMP;

11) Hydraulic motor brand: Italian brand , INTERPUMP.

Applications:

The mixer truck is for mixing and transporting concrete, beton, cement. Our mixer trucks are mainly made by alloy steel, with high quality and competitive price.

Competitive Advantage:

1) For producing mixing tank and mixing blade, our factory use B520JJ alloy steel as material, other factories use Q235 carbon steel. B520JJ alloy steel is 1 ~ 2 times stronger than Q235 carbon steel. Our mixing tank ’ s life can be 50 ~ 80 thousand cubic meters, our mixing blade ’ s life can be 30 ~ 40 thousand cubic meters.
2) Mixing tank is equipped with sectional mold tooling which ensures the tank round and coaxial. Automatic welding ensures the weld seam smooth, beautiful and stronger. Other factories don’t use sectional mold tooling and automatic welding.
3) 3D mixing technology ensures uniform mixing, input rate ≥ 8m3 / min, output rate ≥ 5m3 / min, residual rate ≤ 0 . 45 %, Slump 50 mm ~ 220 mm. We weld special wear rib on the edge of mixing blade which makes the mixing blade’s life increasing more than 12 % . Other factories don ’ t have 3D mixing technology and special wear rib.
4) Reducer, hydraulic pump and motor are optional base on customers ’ requirements.

Specifications:


10 Cbm Cement Mixer Truck HOWO T7H 360Hp 6X4 ZF Reducer INTERPUMP Pump And Motor

Vehicle Description

Overall dimensions ( mm )

8204 x 2496 x 3850

Drum mixing volume ( m3 )

10

Approach/Departure angle

( ° )

16 / 32

F/R overhang ( mm )

1500 /

2129

Wheel base ( mm )

3225 + 1350

Max speed ( Km / h )

90

Curb weight ( kg )

12800

Rated contained mass ( kg )

25000

Steering system

ZF8098, Germany ZF technology

Cabin

HW70, with A / C

Tyre

12 . 00

R20

Radial

Front axle

HF9

Middle and Rear axle

HC16

Gearbox Description

Model

HW13710, manual

Gear

10 F, 2 R

Rated speed ( Rpm )

2600

Max.torque ( N . m )

1390

1st front gear ratio

14 . 08

2nd front gear ratio

10 . 47

3rd front gear ratio

7 . 82

4th front gear ratio

5 . 82

5th front gear ratio

4 . 35

6th front gear ratio

3 . 24

7th front gear ratio

2 . 41

8th front gear ratio

1 . 80

9th front gear ratio

1 . 34

10th front gear ratio

1

1st reverse gear ratio

12 . 67

2nd reverse gear ratio

2 . 91

Engine Description

Cylinder quantity

6

Displacement ( ml )

9726

Power ( hp )

360

Rated speed ( RPM )

2200

Torque ( N . m )

1160

Torque speed ( r / min )

1100 ~

1600

Min . fuel consumption

≤193g / kW . h ( full load )

Engine type

In - line / water - cooling / four - stroke / supercharged inter - cooling

Engine Manufacturer

China National Heavy Duty Truck Group Co.

Reducer Description

Reducer brand

ZF brand ( Germany brand )

Gear ratio

1 : 139

Torque ( N . m )

33000

Hydraulic Pump Description

Hydraulic pump brand

INTERPUMP brand ( Italian brand )

Variable pump output volume

( cm3 )

71

Boost pump output volume

( cm3 )

19 . 6

Max . Rotation speed ( r / min )

3000

Rated Rotation speed ( r / min )

2500

Max . pressure ( MPa )

42

Rated pressure ( MPa )

40

Hydraulic Motor Description

Hydraulic motor brand

INTERPUMP brand ( Italian brand )

Output volume ( cm3 )

63

Torque ( N . m )

400

Max . Rotation speed ( r / min )

3000

Rated Rotation speed ( r / min )

2500

Max . pressure ( MPa )

42

Rated pressure ( MPa )

40

More Pictures:

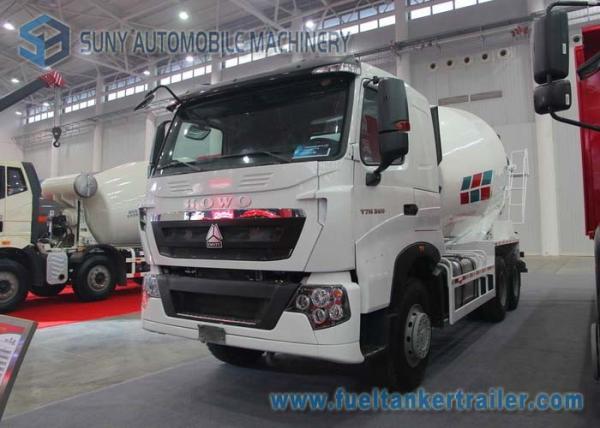

Hydraulic 10 Cbm Cement Mixer Truck HOWO T7H 360 Hp 6X4 ZF Reducer

Hydraulic 10 Cbm Cement Mixer Truck HOWO T7H 360 Hp 6X4 ZF Reducer

Welcome to contact us for more pictures and informaion.
